TAVR Simulator
Product No.:XXK005D
Material:Silicone Shore 40A
Custom Service: Accept customization without charging design cost.
Payment:T/T
Lead Time:7-10 days
Shipping Methods:FedEx, DHL, EMS, UPS, TNT
If you’d like to know more details about this products, pls send inquiry to jackson.chen@trandomed.com. for more of our other typical products, pls visit our website or download our product brochure.
Brief Introduction
The TAVR Simulator (XXK005D) is an advanced medical training device meticulously engineered to emulate the intricacies of Transcatheter Aortic Valve Replacement procedures. This simulator stands at the forefront of medical education, offering an unparalleled level of realism and interactivity.

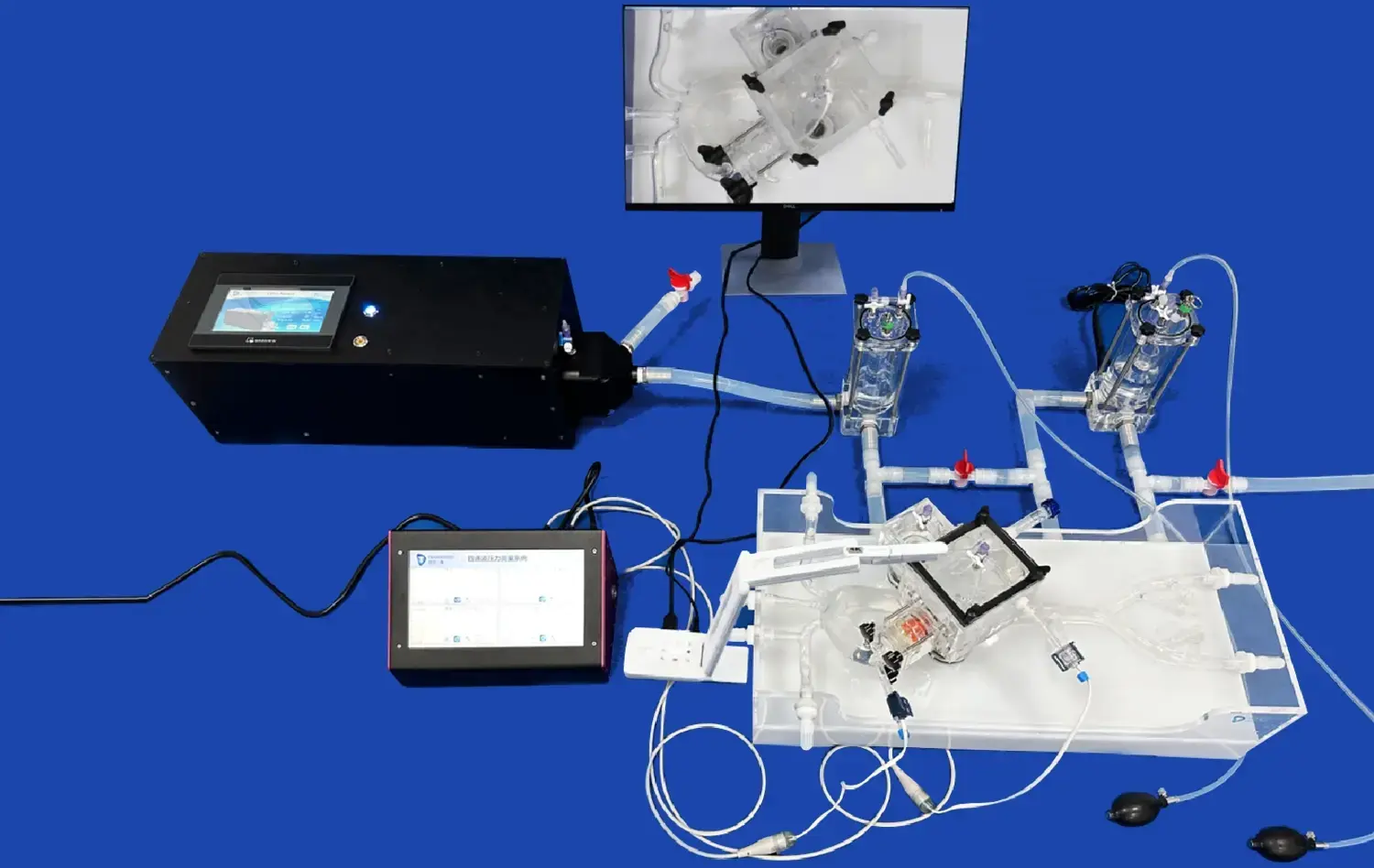

It is a comprehensive system that includes a TAVR vascular model, EDU-heart pump, four-channel hemodynamic data acquisition system, systemic venous compliance cylinders, dynamic compliance cylinders, and four replaceable aortic valves, including both healthy and calcified options. The TAVR Simulator is designed to provide hands-on experience for medical professionals, enabling them to practice and perfect their skills in a controlled and risk-free environment.
Application
- The TAVR Simulator is a versatile tool with a wide range of applications in the field of cardiovascular medicine.
- It is used for demonstrations, training, and marketing simulations of TAVR procedures, offering a platform to model and emulate both normal and calcified valve fluid systems.
- The simulator is also applicable for the testing and validation of mechanical aortic valves and percutaneous ventricular assist devices (PVADs).
- Medical professionals can utilize the simulator to refine their techniques in valve replacement, gain a deeper understanding of cardiovascular dynamics, and prepare for the challenges of the operating room. The realistic physiological waveforms and adjustable parameters ensure that the training experience closely mirrors actual patient scenarios.
The technical parameters that the entire simulator can achieve are as follows
|
Parameters
|
Unit
|
Variation range
|
Remark
|
|
HR
|
Bpm
|
40-150
|
adjustable
|
|
Heart systolic ratio
|
%
|
30-50
|
|
|
CO
|
L/min
|
0-5
|
|
|
SV
|
mL
|
10-80(CO/HR)
|
Value at outlet of the pump
|
|
EDP
|
mmHg
|
0-20
|
adjustable, Value at outlet of the pump
|
|
DP
|
mmHg
|
0-150
|
|
|
|
mmHg
|
40-80
|
|
|
SP
|
mmHg
|
0-150
|
|
|
mAoP
|
mmHg
|
60-90(1/3DP+2/3SP)
|
|
Components Features

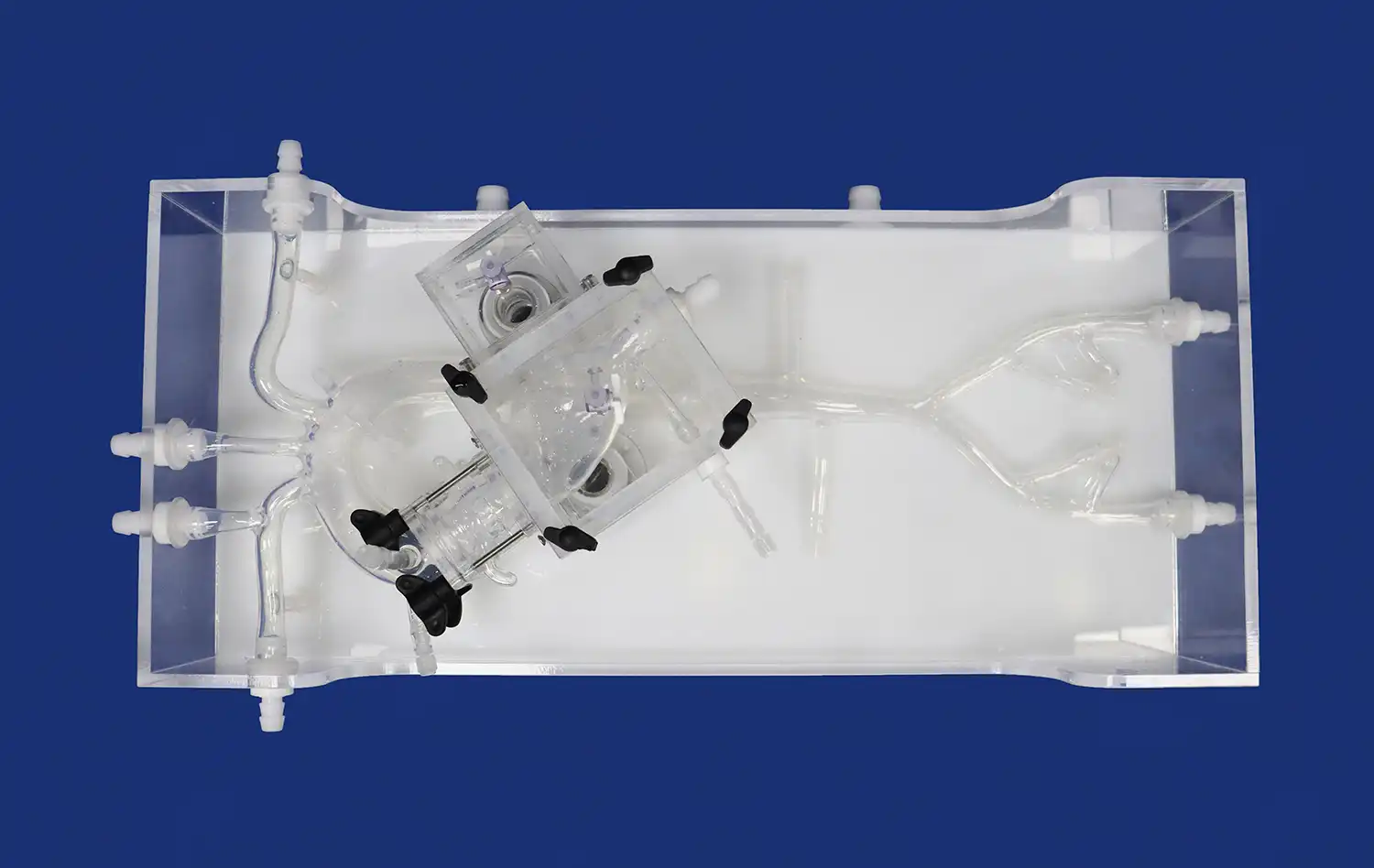

- TAVR Model:The model is fixed in an transparent acrylic box and mainly contains aortic arch, abdominal aorta, iliac artery, femoral artery, replaceable simulated left ventricle and replaceable aortic valve, etc. There are totally 5 pressure testing points distributed at 5 locations of the model, which are designed for testing pressure at different locations by connecting with sensors. Through the convenient valve-quick fixing frame, different valves can be efficiently disassembled and installed.
- EDU-Heart Pump: The pump belongs to piston pump, the heart rate and stroke volume of the pump are adjustable, it can realize the output of simulated physiological waveform, and it can constantly provide artificial driving force for blood circulation within the simulator.
- 4-Channel Hemodynamic Data Acquisition System:The system consists of a control box and a software system (installed on a laptop), which can simultaneously test, acquire and record pressure values of 4 testing points at most. In addition, the system also has muti functions, for example, sensor data correction, comprehensive display of multi-channel pressure values, independent display of pressure values, and pressure data storage, etc.
Custom Service
- The Aortic Arch of the model is customizable and can be replaced as required.
- Aortic stenosis can also be incorporated. The iliac and femoral structures can be simplified as necessary.

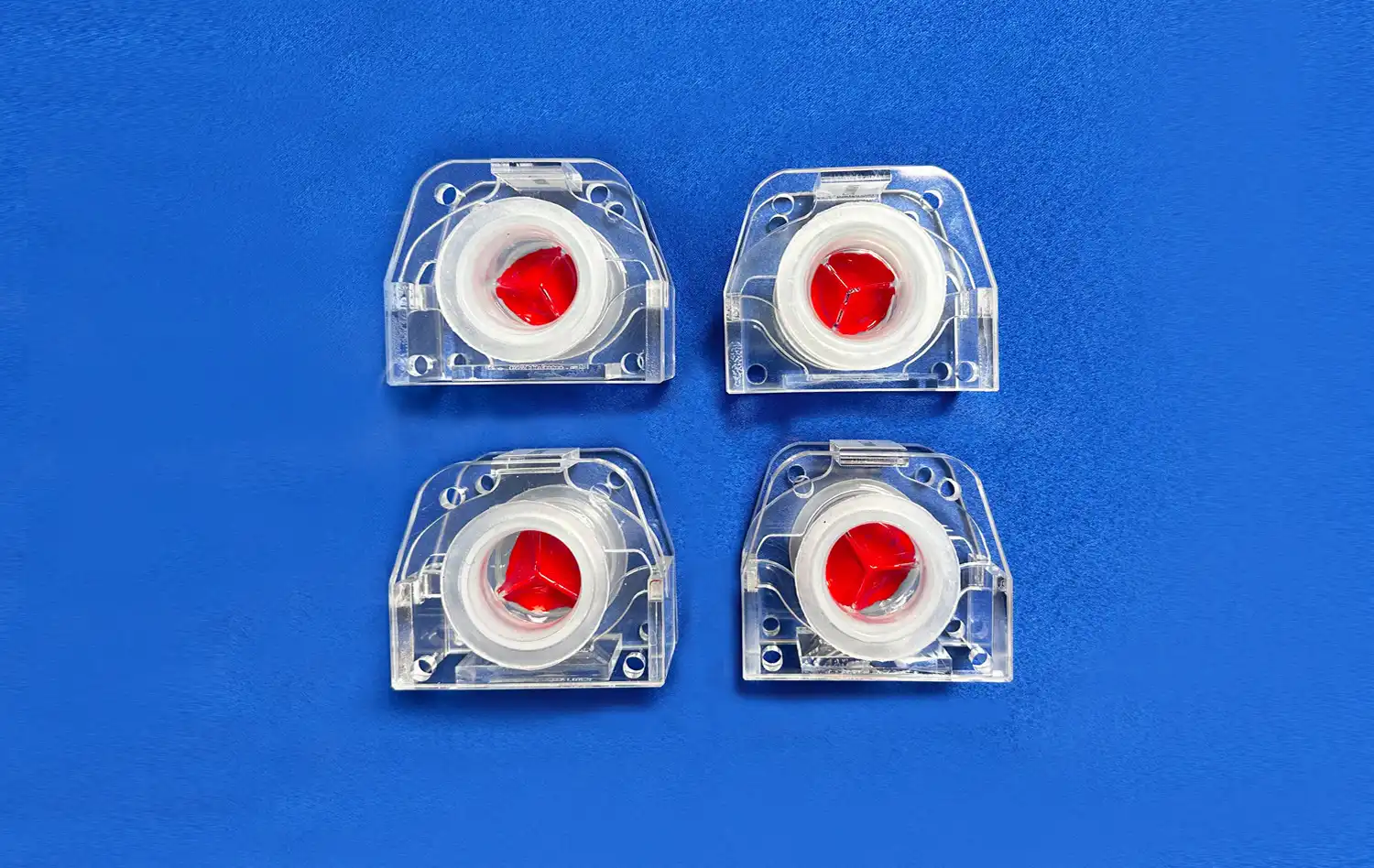

- Various Aortic Valve types, including healthy and calcified, can be added or replaced, with the option to customize the dimensions of the valves.
Why Choose Us?
- Expertise and Experience: Over a decade of experience in developing advanced simulation solutions.
- Customization: We offer free design cost for customized solutions to meet your specific needs.
- Quality Assurance: Rigorous quality control processes and certifications ensure reliability.
- Technical Support: Dedicated technical team providing comprehensive pre and post-sales support.
- Global Reach: Efficient shipping methods and a vast network of distributors worldwide.
