Pulsatile Pump

Pulsatile Pump

Other Product Name:Pulsatile Pump P-120
Product No.:EDU-P120
Payment:T/T
Lead Time:7-10 days
Shipping Methods:FedEx, DHL, EMS, UPS, TNT
If you’d like to know more details about this products, pls send inquiry to jackson.chen@trandomed.com. for more of our other typical products, pls visit our website or download our product brochure.

Brief Introduction

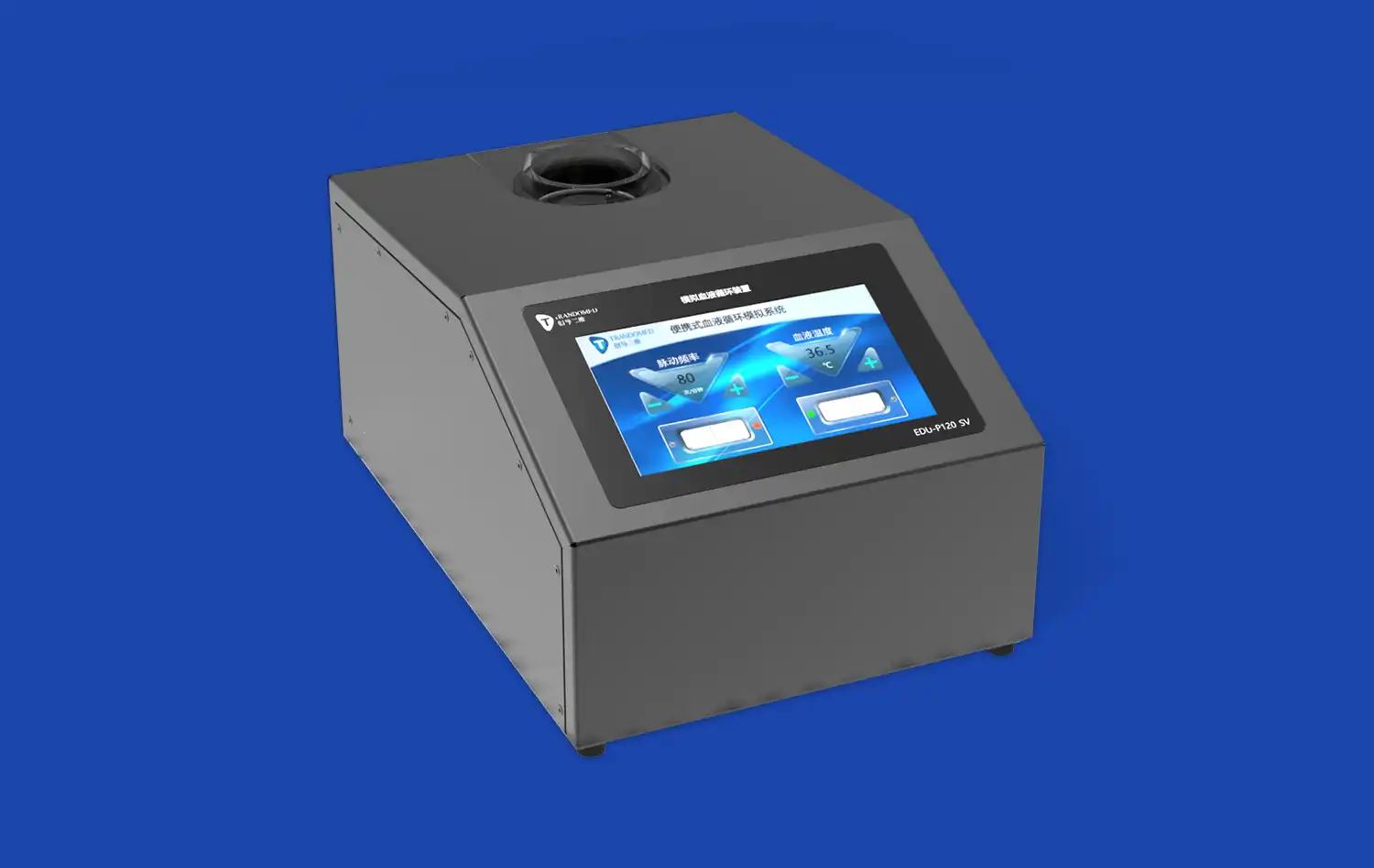

The Pulsatile Pump P-120 (EDU-P120) is a sophisticated medical simulation device designed to replicate the complex dynamics of the human circulatory system. This advanced pump is not merely a piece of equipment; it is a versatile tool that brings cardiovascular procedures to life in educational and training settings.

With its ability to adjust liquid temperature and pulsation rate, and its capacity to set a range of parameters including flow rate, pressure, and high-pressure duration, the P-120 is a testament to our commitment to realism and precision in medical simulation. Its intuitive 7.0-inch touchscreen interface, boasting a resolution of 1024*600, allows for seamless control and adjustment of pulsation frequency, pressure at the pulsation output end, and flow rate, ensuring that the simulation closely mirrors the hemodynamic conditions encountered in real-life scenarios.

Specifications

Electrical parameters
Input voltage
220VAC 50/60Hz
Circulating rated power
150W
Heat load rated power (total rated power)
450W
Operation model
7.0-inch touch screen
1024*600 resolution
Pulsation frequency
10-200bpm(adjustable)
Pressure at pulsation output end
62-230mmHg(adjustable)
Flow at pulsation output end
2-5L/min(adjustable)
Temperature control range of circulation system
normal temperature-45℃(adjustable)
Temperature control accuracy
±0.5℃
Waterproof grade
IP54 waterproof grade
Mechanical parameters
Device size
265*350*185mm
Packing size
550*400*330mm
Device weight
9.5Kg
Total package weight
14.80Kg
Liquid storage capacity
2L
Interface type
C-type quick connector
Operating noise
≤75dB

Application

  • The P-120 pulsatile pump is a cornerstone for a myriad of applications in medical simulation, research, and education.
  • It is utilized in various training models ranging from small to large, providing a realistic platform for practicing procedures such as vascular access, and cardiovascular surgeries.
  • Its adjustable parameters make it suitable for simulating a wide range of physiological states, from normal to pathological conditions.
  • The pump's flexibility extends to research applications, where it can be used to test medical devices under controlled, pulsatile flow conditions.
  • Moreover, its use in educational programs helps students and professionals visualize and understand the intricacies of blood circulation, making it an indispensable asset in medical training centers and research institutions.

Pulsatile Pump P-120(EDU-P120)

Why Choose Us

  • Reliability & Safety

        Engineered with high-quality materials for consistent performance.

        Comprehensive safety features to protect patients and staff.

  • Exceptional Support

        Dedicated technical support team available 24/7.

        Comprehensive training and maintenance services.

  • Certified Quality

        Meets international standards with FDA and CE certifications.

        Rigorous quality control processes ensure product excellence.

  • Cost-Effective Solutions

        Competitive pricing without compromising on quality.

        Excellent cost-benefit ratio for large-scale procurement.

Contact Us

Trando 3D Medical Technology Co., Ltd is a professional Pulsatile Pump P-120 manufacturer and supplier, If you are interested it, please feel free to contact us at jackson.chen@trandomed.com.
