Artificial Heart Pump
Other Product Name:Pulsatile Pump L-200
Product No.:EDU-V200
Payment:T/T
Lead Time:7-10 days
Shipping Methods:FedEx, DHL, EMS, UPS, TNT
If you’d like to know more details about this products, pls send inquiry to jackson.chen@trandomed.com. for more of our other typical products, pls visit our website or download our product brochure.
Brief Introduction

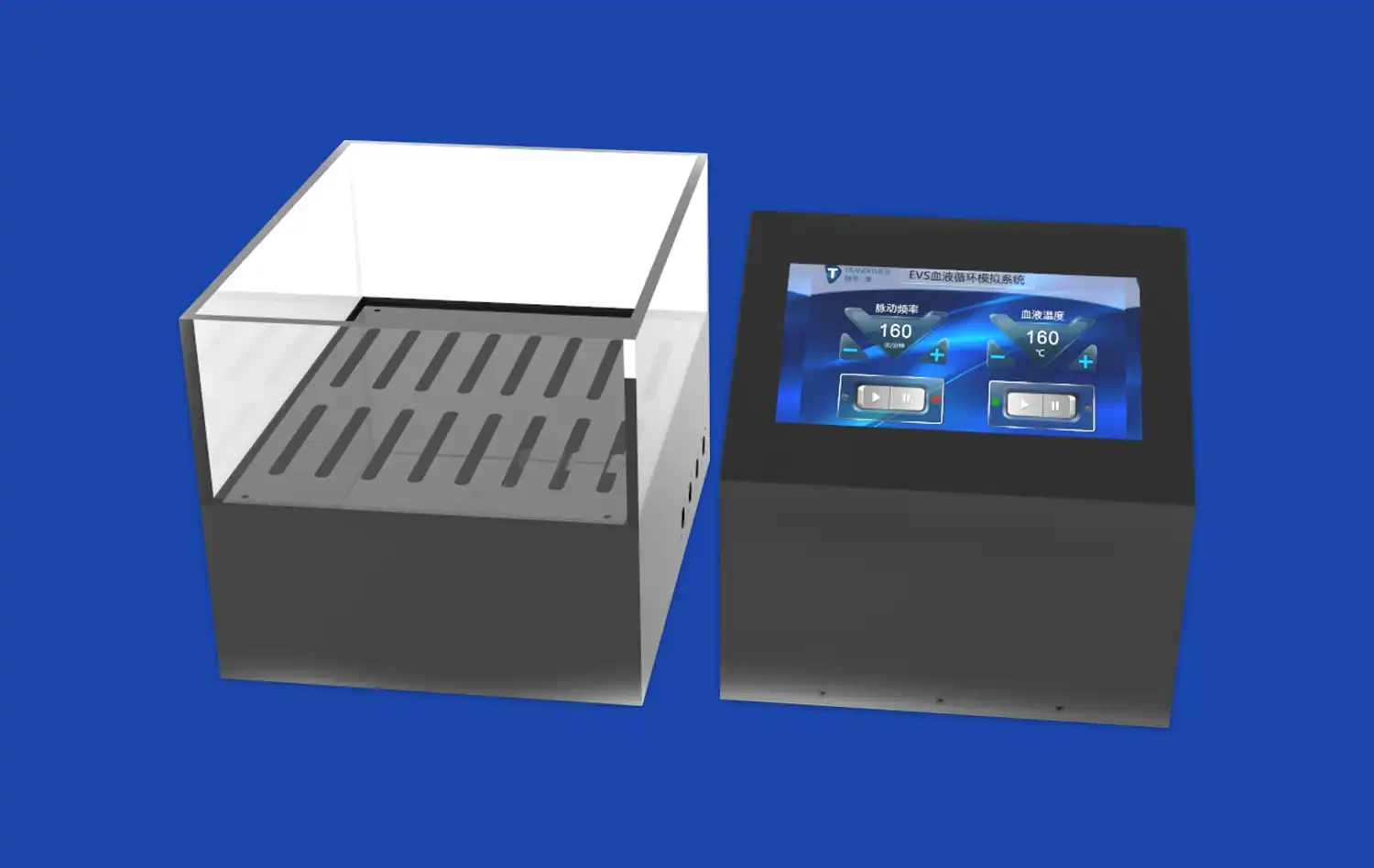

The Artificial Heart Pump, a state-of-the-art medical device, is designed to emulate the intricate functions of the human heart with exceptional precision. This device, designated as the Pulsatile Pump L-200 under the model EDU-V200, is more than a mere mechanical pump; it is a sophisticated simulator that captures the essence of cardiac physiology. Engineered with a 10.1-inch touchscreen interface, it offers a resolution of 1024*600, providing an intuitive and user-friendly control system for adjusting pulsation frequency, pressure, and flow rate.
The pump's capabilities extend to a wide range of settings, allowing it to cater to the specific demands of various medical simulations, from standard procedures to complex surgeries. With adjustable parameters such as liquid temperature, pulsation rate, and high-pressure duration, the Artificial Heart Pump is a testament to our commitment to providing medical professionals with the most realistic and adaptable training tools.
Specification
|
Electrical parameters
|
|
|
Input voltage
|
220VAC 50/60Hz
|
|
Circulating rated power
|
80W
|
|
Heat load rated power (total rated power)
|
480W
|
|
Operation model
|
10.1-inch touch screen
1024*600 resolution
|
|
Pulsation frequency
|
20-200bpm(adjustable)
|
|
Pressure at pulsation output end
|
65-216mmHg(adjustable)
|
|
Flow at pulsation output end
|
5-12L/min(adjustable)
|
|
Temperature control range of circulation system
|
normal temperature-45℃(adjustable)
|
|
Temperature control accuracy
|
±0.5℃
|
|
Resolution
|
±0.1℃
|
|
Mechanical parameters
|
|
|
Device size
|
335*240*244mm
|
|
Device weight
|
3.45Kg
|
|
Liquid storage capacity
|
8L
|
|
Interface type
|
Four-quarter pagoda connector
|
Application
- The Artificial Heart Pump is a versatile device with a multitude of applications in the medical field.
- It is widely used in educational institutions for teaching cardiac anatomy and physiology, providing students with a hands-on understanding of the heart's function.
- In addition, it plays a crucial role in training medical professionals in various cardiovascular procedures, enhancing their skills in a controlled environment.
- The pump's adjustable features make it suitable for simulating a variety of clinical scenarios, from routine check-ups to emergency interventions.
- Furthermore, its use extends to research and development, where it can be utilized to test and evaluate new medical devices and surgical techniques under pulsatile flow conditions.
- The Artificial Heart Pump is an indispensable tool for any institution looking to advance their capabilities in cardiac education and training.
Why Choose Us?
- 20+ years of experience in cardiac devices
- Used in top hospitals worldwide
- 24/7 technical support
- High patient survival rates
- Cost-effective long-term solution
Contact Us
With a wealth of expertise in creating medical models and simulators, Trando 3D Medical Technology Co., Ltd is a seasoned producer and supplier. We offer bulk production as well as customized services to fulfill the various needs of our clients worldwide. We specialize in self-developed products. Contact us at jackson.chen@trandomed.com if you have any questions about the Artificial Heart Pump or any of our other medical simulation products.
